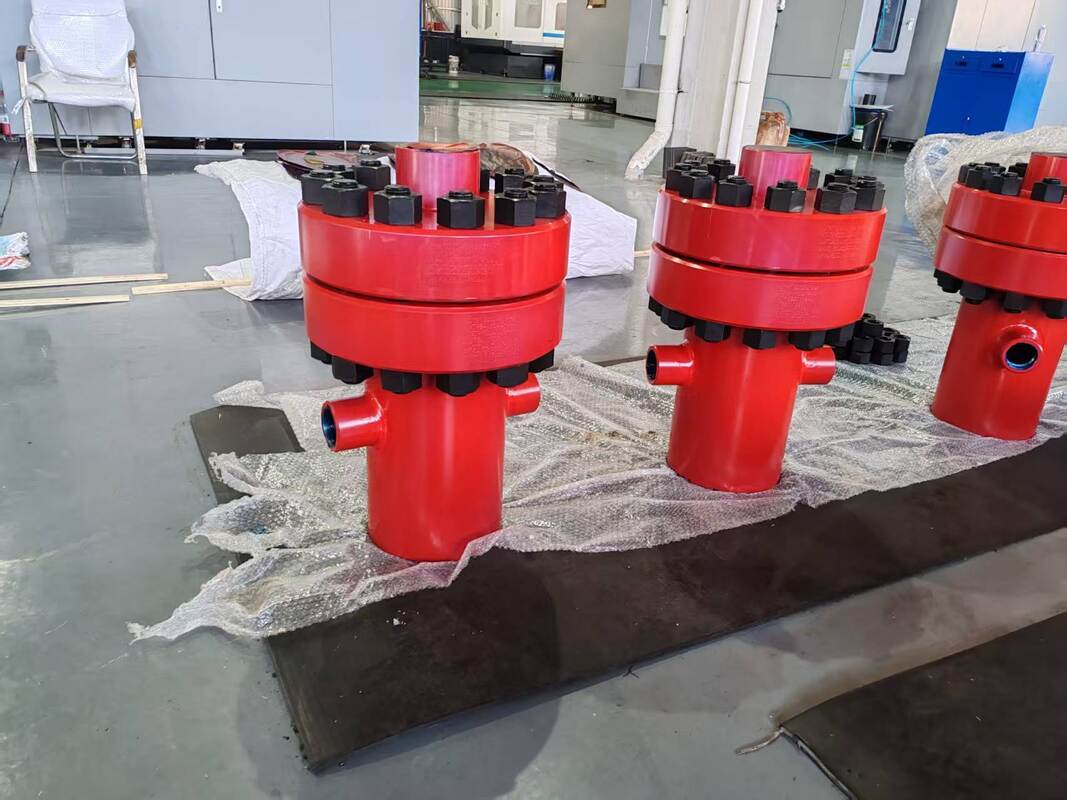

API 6A Wellhead TUBING SPOOL for Oilfield Cementing 2000-15000 PSI

Name: API 6A Wellhead TUBING SPOOL for Oilfield Cementing 2000-15000 PSI
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: 2000psi hingga 20000pis
Price: 4,500.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina, Henan

Nama merek: ZS

Sertifikasi: API

Nomor model: 2000psi hingga 20000pis

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Harga: negotiable

Kemasan rincian: Kotak logam atau kayu

Waktu pengiriman: 15 hari kerja

Syarat-syarat pembayaran: T/T

Menyediakan kemampuan: 1000 set/bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:

Aplikasi:	SPOOL TABUNG	Jaminan:	1,5 tahun
Tekanan Kerja:	2000~15000PSI	Sertifikasi:	API
komponen inti:	Bearing, Gearbox, Bejana tekan	Jenis pemrosesan:	Penempaan
Fitur:	pohon Natal	Kapasitas Produksi:	1000 Set/tahun
Sertifikat:	ISO, API, dll.	MOQ:	1 buah
Bahan:	Baja Karbon, Baja Paduan, Baja Tahan Karat, dll.

Aplikasi:	SPOOL TABUNG
Jaminan:	1,5 tahun
Tekanan Kerja:	2000~15000PSI
Sertifikasi:	API
komponen inti:	Bearing, Gearbox, Bejana tekan
Jenis pemrosesan:	Penempaan
Fitur:	pohon Natal
Kapasitas Produksi:	1000 Set/tahun
Sertifikat:	ISO, API, dll.
MOQ:	1 buah
Bahan:	Baja Karbon, Baja Paduan, Baja Tahan Karat, dll.

API 6A Wellhead TUBING SPOOL for Oilfield Cementing 2000-15000 PSI

Casing head

The casing head is a kind of part of connecting casings and wellheads. It is used to support the weight of technical casing and intermediate casing and seal the annular space between the casings, which provides a transition joint for the installation of the tubing head, Christmas tree and other wellheads. The two-side-outlet design allows the casing head to supply cement, monitor and control well's sinking, and inject balance liquids etc.

It can be designed into general or integral structure as required;

It can be completed with pneumatic/hydraulic safety valve;

It can be classified into two kinds of single-wing and dual-wing.

As required, matched choke may be positive choke or adjustable choke alternatively.

Connection Thread Slip, Welled, Threaded

Nominal Bore Diameter 7 1/16-21 1/4

Temperature Class L-U

Material Class AA-HH

PSL 1-3 PR 1-2

API 6A Wellhead TUBING SPOOL for Oilfield Cementing 2000-15000 PSI 0

Product Paramenters

Top Flange Size (inches)	Working Pressure (psi)	Bottom Flange Size (inches)	Working Pressure (psi)
11"	2,000	11"	2,000
11"	2,000	13-5/8"	3,000
11"	3,000	11"	3,000
11"	3,000	11"	2,000
11"	3,000	13-5/8"	2,000
11"	3,000	13-5/8"	3,000
11"	3,000	16-3/4"	2,000
11"	3,000	16-3/4"	3,000
11"	5,000	13-5/8"	3,000
11"	5,000	16-3/4"	3,000
11"	10,000	13-5/8"	5,000
13-5/8"	3,000	16-3/4"	3,000
13-5/8"	3,000	21-1/4"	2,000
13-5/8"	5,000	20-3/4"	3,000

Product Description

API 6A wear bushing wellhead

spool and adapter can be designed according to customer's all kinds of models and sizes to meet the requirements in work site.
there are three kinds of connecting models for bop 2 connection and outlets. including flanged,studded and clamped-in style.gasket groove is line welded by stainless steel according to API Spec 6A . so as to prolong the using period and decrease the maintaining cost.
Structure of Tubing Head Tubing head is usually a spool with both flanged ends, which is set on the top flange of casing head to hang tubing hanger and seal the annular space between the tubing string and oil-layer casing and which consists of tubing head spool and tubing hanger.

API 6A Wellhead TUBING SPOOL for Oilfield Cementing 2000-15000 PSI 1
